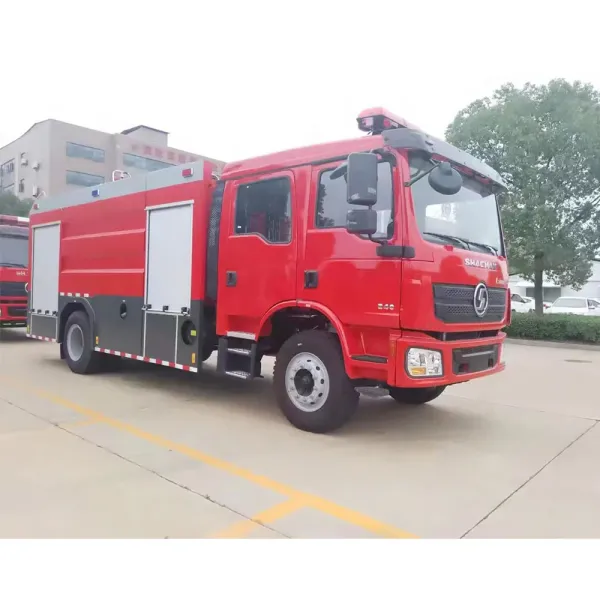

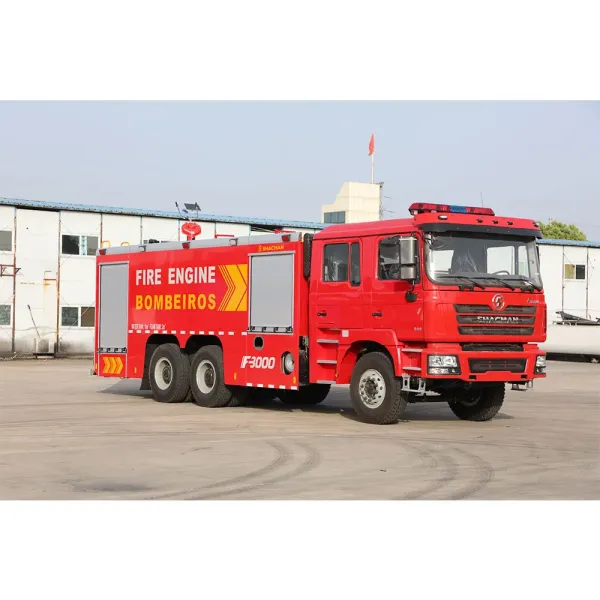

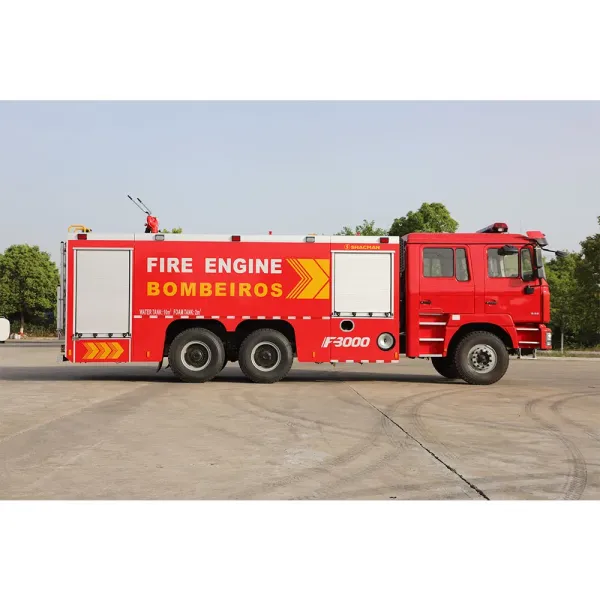

Shacman Weichai Engine Water Tank Fire Fighting Lorry Truck
Heavy Duty Shacman LHD RHD Cargo Tipper Self Dump Tractor Truck
Product Overview
A dump truck is designed with a front-elevating box that allows contents to be dumped out the back. These trucks are commonly used for transporting construction waste, sand, gravel, and similar materials. SHACMAN offers five dump truck series - X3000, F3000, H3000, F2000, and L3000 - to meet diverse customer requirements. With configurations ranging from standard tippers to specialized vehicles for demanding applications, SHACMAN provides comprehensive solutions for any job requirement.
Technical Specifications
| MODEL |
SX4255JT324 |
| Driver Position |
Left Hand |
| Driving Type |
6×4 |
| Wheelbase |
3175+1400 |
| Max. Speed |
90km/h |
| Engine Brand |
Weichai |
| Engine Model |
WP10.380E22 |
| Emission Standard |
EUR2 |
| Rated Output Power |
380HP |
| Displacement |
9.596L |
| Transmission Model |
12JSD200T-B |
| Front Axle |
HANDE MAN 7.5T |
| Rear Axle |
HANDE 13T MAN twin-stage 4.769 |
| Clutch |
¢430 diaphragm clutch |
| Steering |
ZF technology/ZF |
| Frame |
850×300(8+5) |
| Suspension |
Front and rear multi leaf spring |
| Fuel Tank |
400L Aluminum Alloy |
| Wheels and Tires |
12.00R20 |
| Brakes |
Dual circuit compressed air brake, spring control parking brake, engine exhaust brake, without ABS |
Cab Features
F3000 cab with air master seat, four hydraulic mounts, single refrigeration and air conditioning, electric shake window machine, manual flip, ordinary air filter, common 90 saddle, metal bumper, hinged pedal, fenders, 165 ah maintenance-free battery, tank protection gate, headlamps protection gate, tail lamp protection gate, oil security, battery box anti-theft, SHACMAN identification, all English signage, common coarse filter, 2 danger warning lights.
Customizable Components
- Gearbox: FAST manual or EATON ATM transmission systems available.
- Lifting System: HYVA or Chinese brand lifting mechanisms.
- Dumper Size: Customizable height and thickness dimensions.
- Cab: F3000, H3000, or X3000 series. X3000 offers premium features, F3000 is most popular, H3000 provides cost-effective solution.
- Tire: Custom tire specifications available.
- Oil Tank: Custom fuel tank configurations.
- Color: White, Red, Orange, Green, Blue color options.
- Spares: Additional accessories including cameras, daylight systems, and more.
Manufacturer Profile
Shaanxi Hexin Shenghua Trading Co., Ltd is a global export authorized enterprise of Shaanxi Automobile heavy truck. As the largest export authorized enterprise in SHACMAN heavy truck sales and service countries, our core business focuses on vehicle production customization services.
Our development philosophy centers on professional expertise, innovation, and long-term vision, with 20 years of specialized foreign trade experience. Established on September 20, 2019, we primarily handle the integrated export of Shaanxi Automobile heavy trucks, construction machinery, and special vehicles.
Committed to continuing the Silk Road business tradition, we actively expand international and domestic markets with established companies and sales outlets in Uzbekistan, Tajikistan, Kyrgyzstan, Vietnam, and other countries through cooperative partnerships. Our foreign trade business extends across Central Asia, Africa, Asia-Pacific, Central and South America, forming a comprehensive foreign trade export circulation system.
